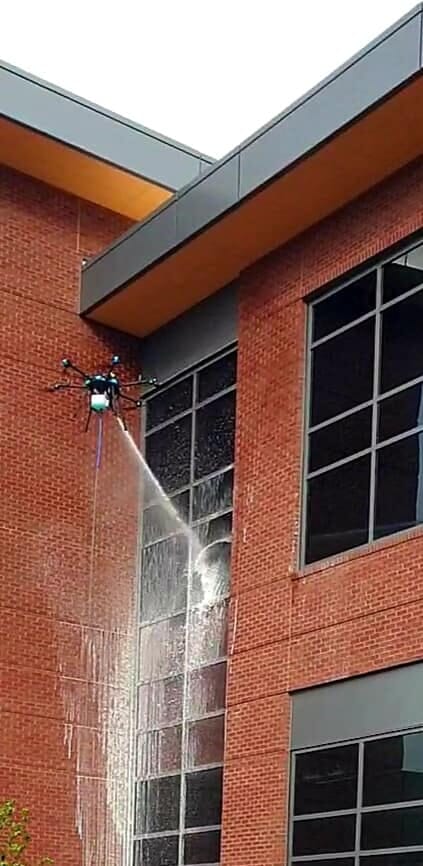

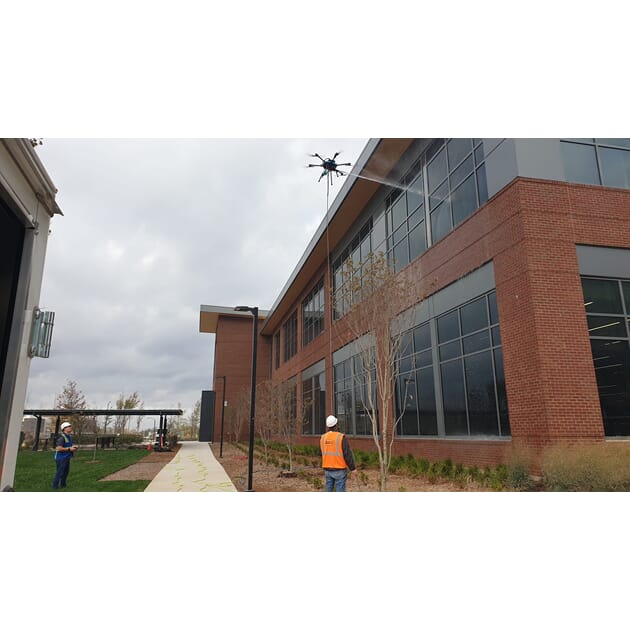

The Skyline Ultimate Drone System is a fully integrated softwash and pressure washing rig developed with Midwest Washing Equipment.

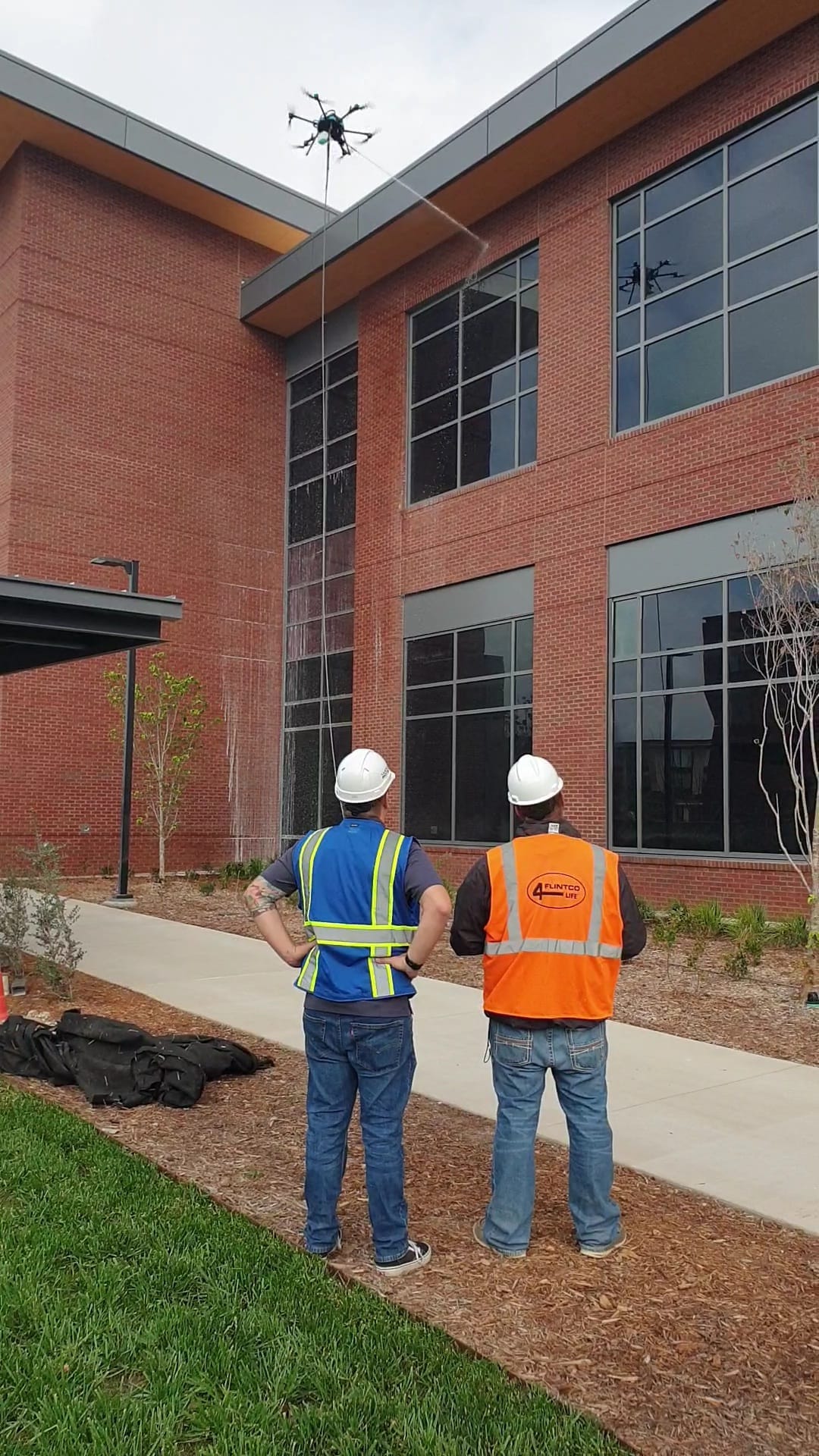

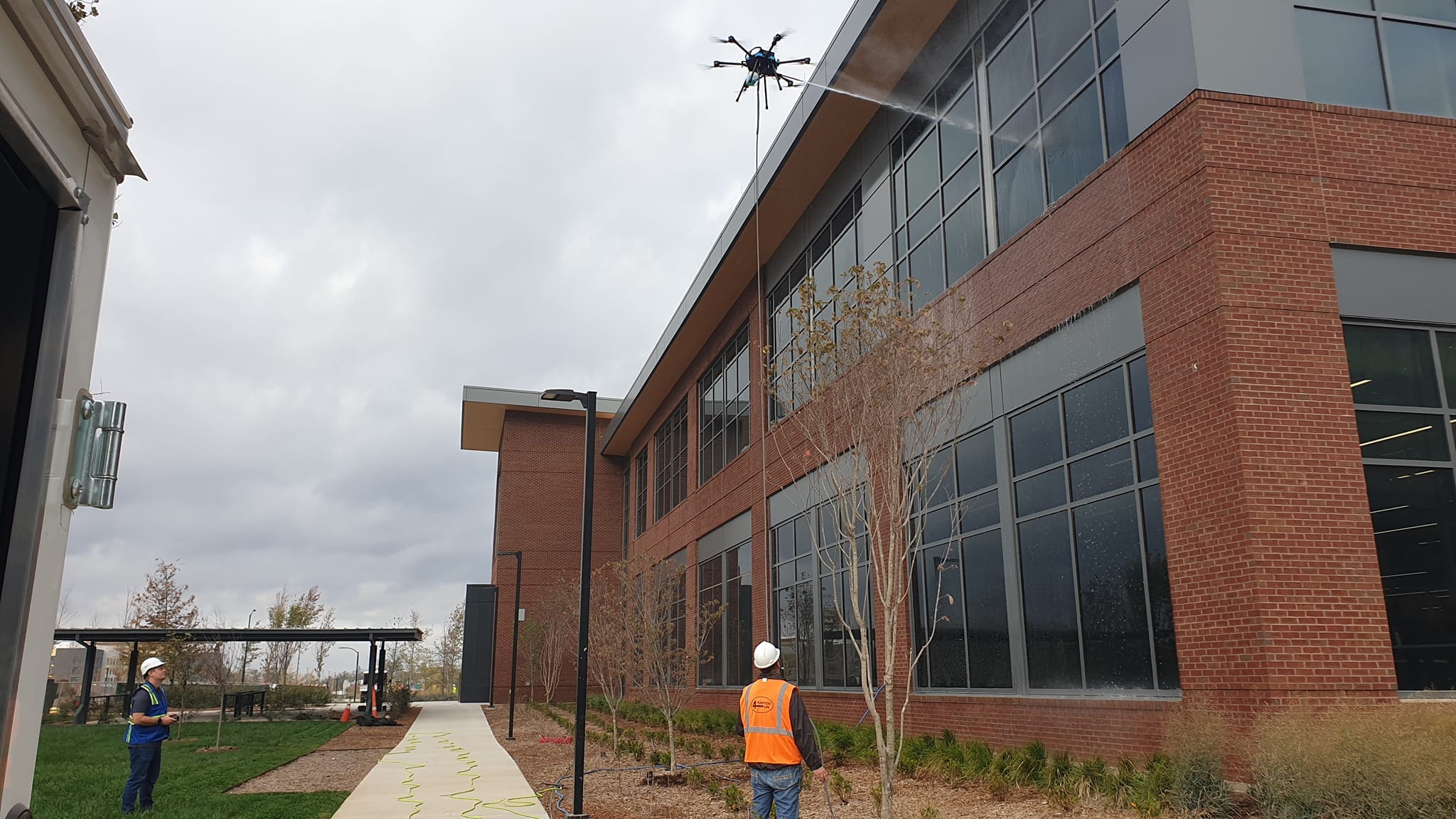

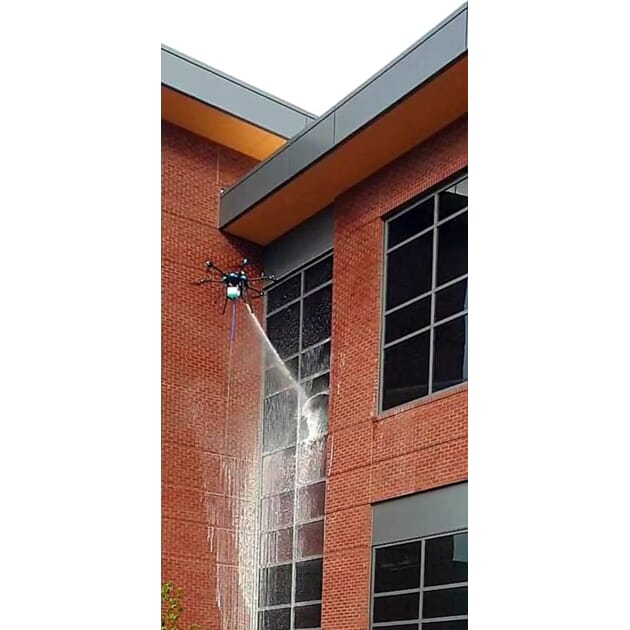

Designed specifically for drone operations, it delivers high flow, precise chemical control and full remote functionality – built for professionals operating at height where safety, efficiency and access are critical.
If this doesn`t raise your heart beat - nothing will!
At the core is a dual high-pressure system with two independent pumps: one dedicated for drone use and one for ground-based applications.
Both systems can run simultaneously, each delivering 21 L/min at 200 bar, powered by Honda GX390 engines paired with heavy-duty gear-driven General Pumps.
This setup provides maximum flexibility and productivity on demanding jobs.

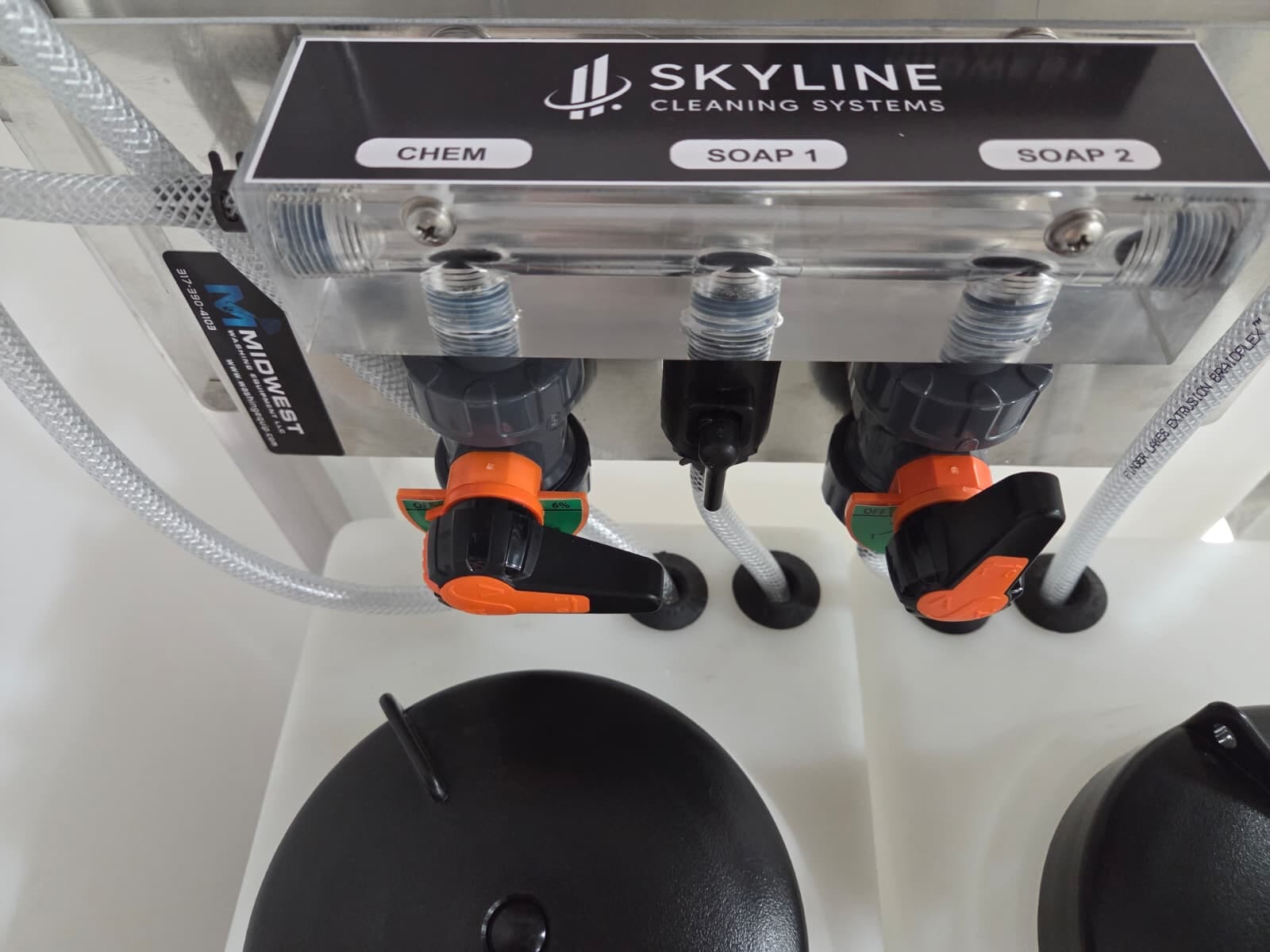

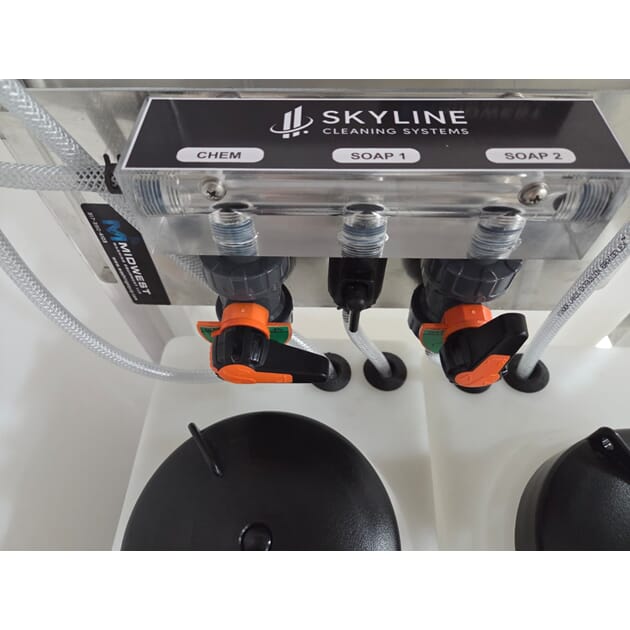

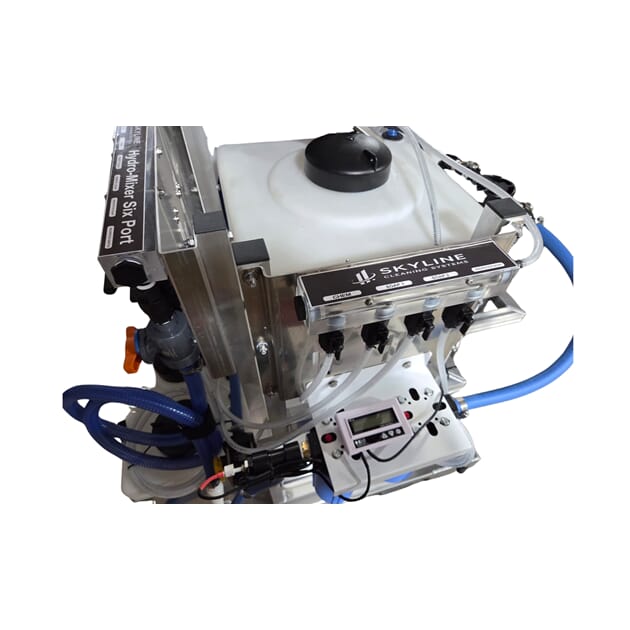

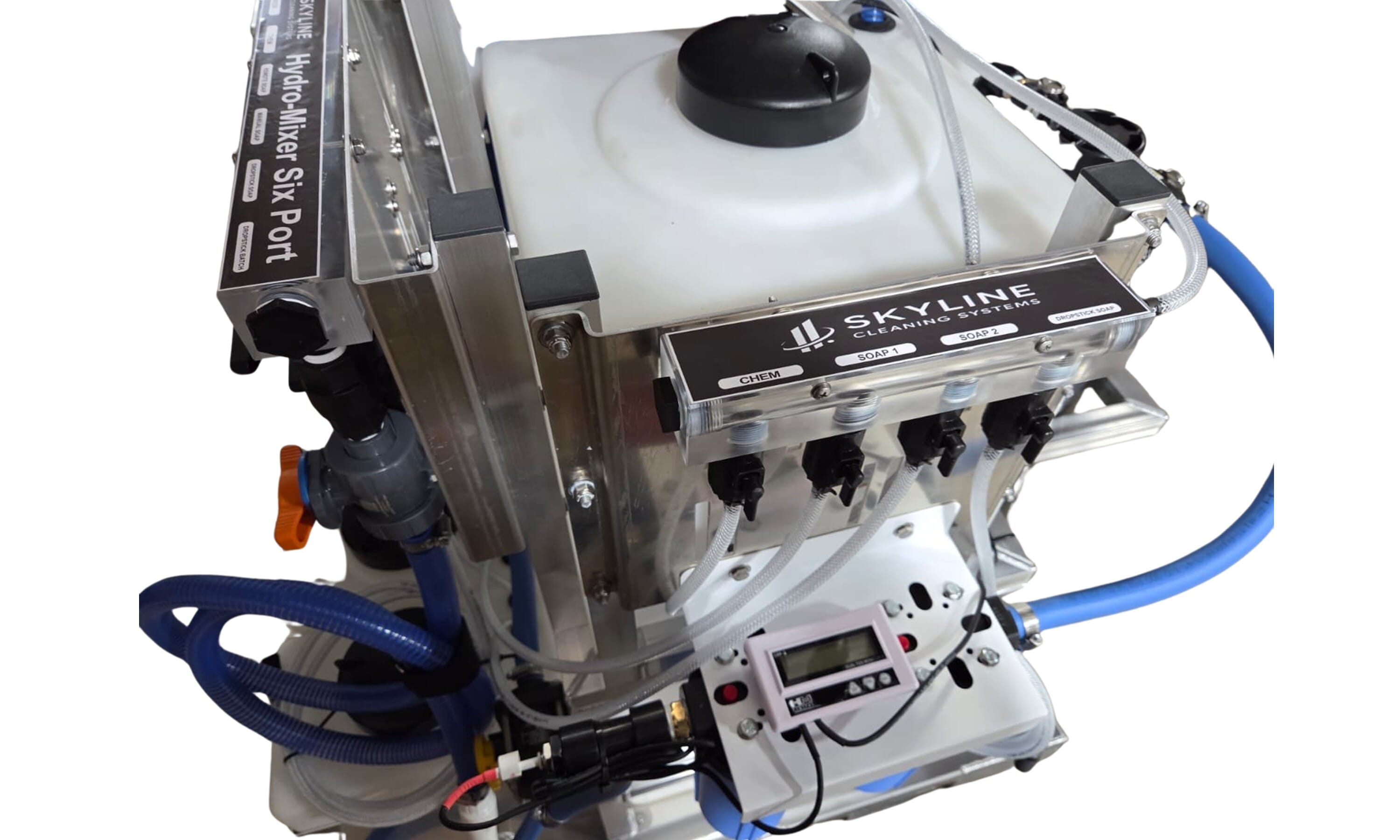

The drone system is equipped with the ClearView Hydro-Mixer V6, allowing operators to mix and switch between up to 5 different chemical options including water and pure water. Combined with the RigLink remote rinse module, this gives precise, real-time control over flow and chemical application – essential for accurate drone cleaning.
The second system features a V3 downstream injector, enabling up to 3 chemical options for ground-based cleaning.
Together, both systems cover a wide range of applications without compromise.
Both pressure systems are fully controlled via the RigLink remote system, allowing you to start/stop each unit and control chemical application remotely – all from a single controller.
The tank setup includes a 380L pure water tank, 200L chemical tank and two 25L soap tanks – providing the capacity required for extended operations while maintaining a balanced footprint.

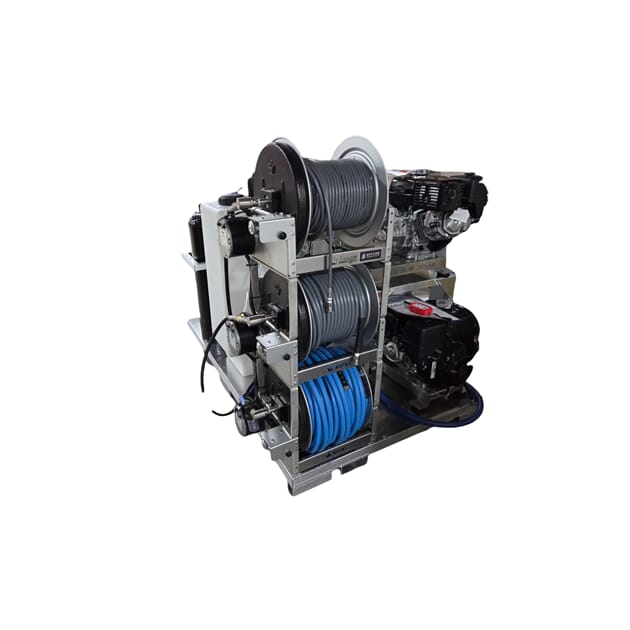

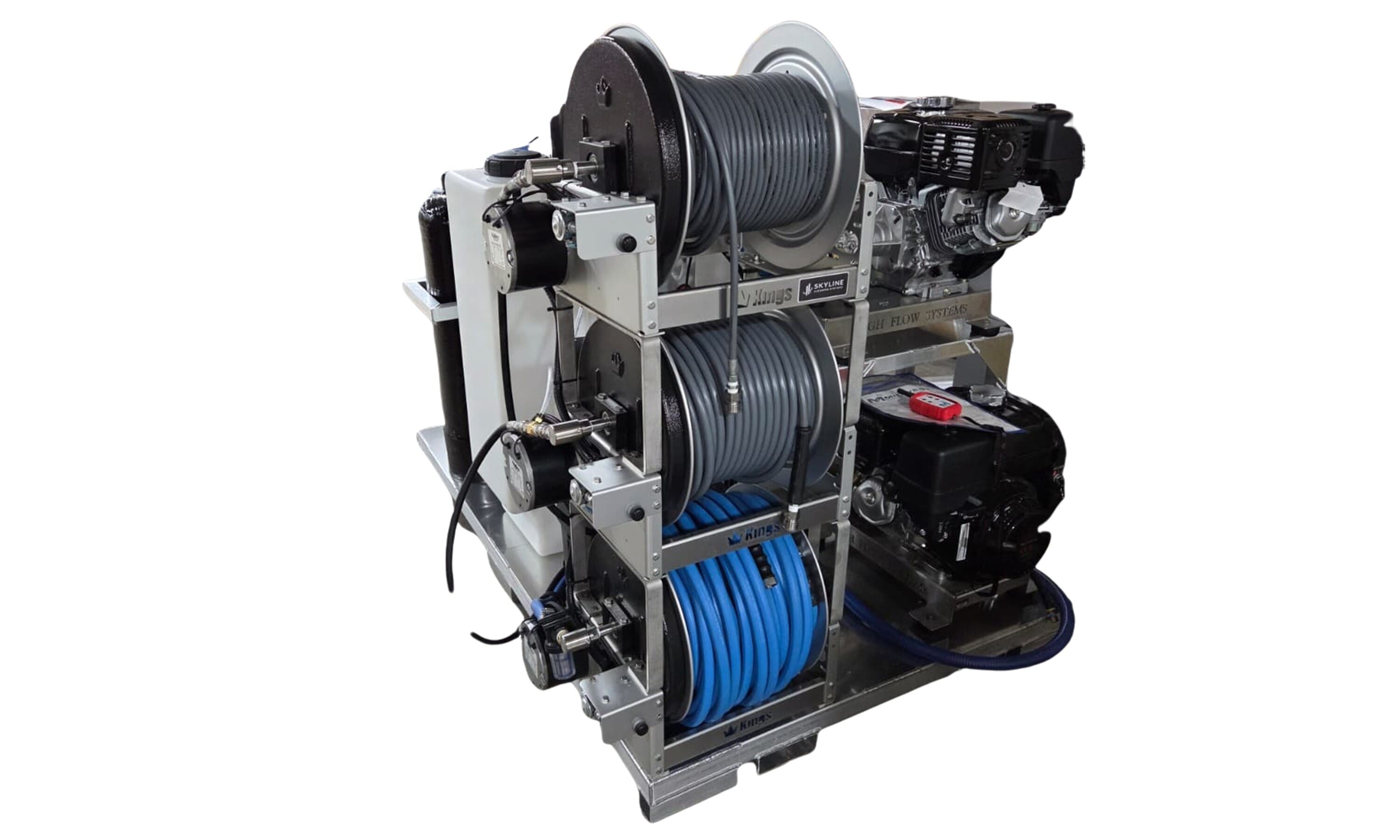

Three electric hose reels (aluminum frame, stainless internals) keep the system organized, with dedicated reels for drone/high pressure, ground high pressure and water supply.
The system includes 60 meters of hose for each line, ensuring excellent reach and consistent flow.
An integrated DI filter system provides pure water production, with sediment and carbon pre-filters, inline TDS meters and bypass functionality for flexible operation depending on the job.
The electrical system is built for reliability, featuring a 12V Group 27 battery, fuse panel and onboard charger.
The system comes fully equipped with a chemical-resistant trigger, 45 cm Schedule 80 PVC wand and JROD nozzle set. Features like float shutoff, inlet strainer and chemical-resistant fittings ensure stable operation and long service life.

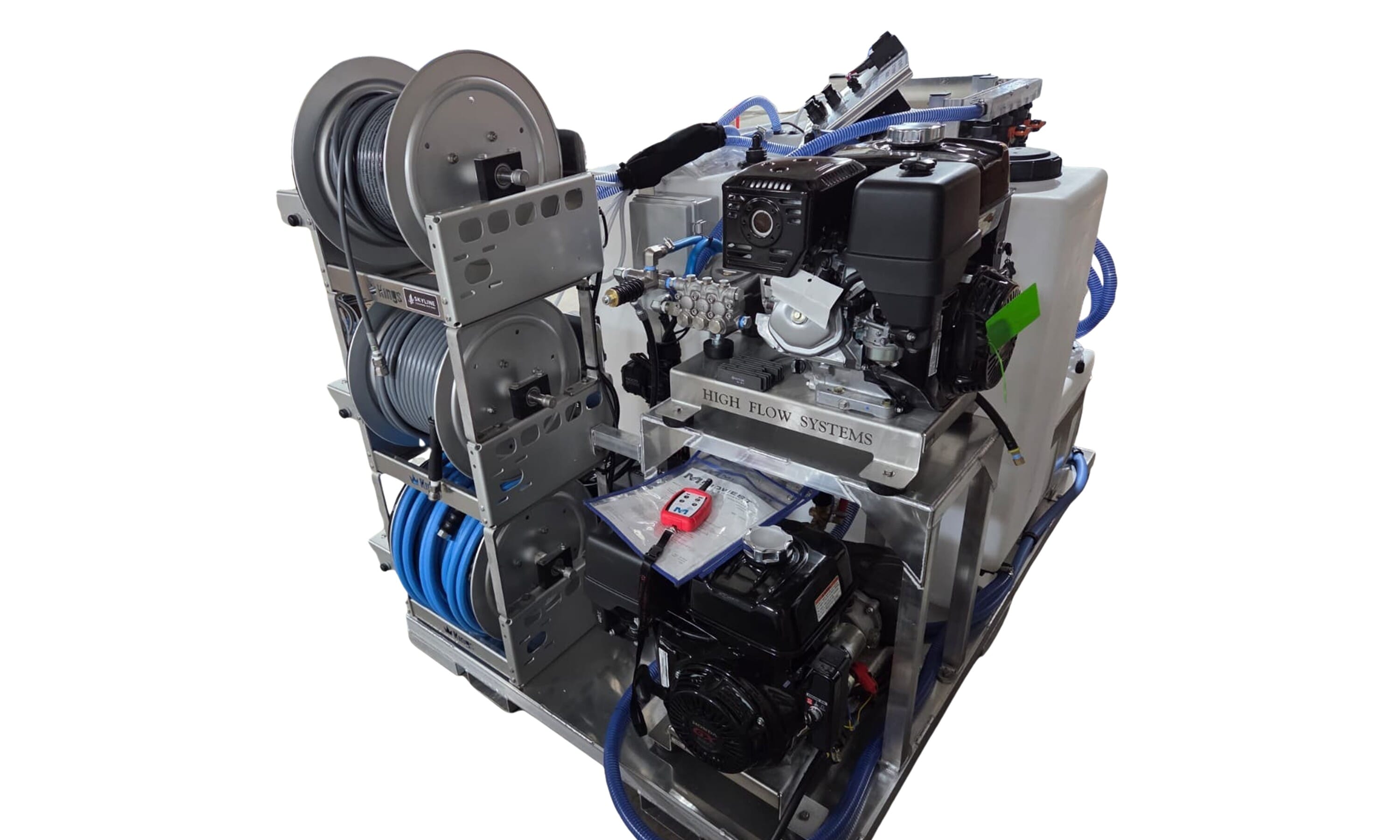

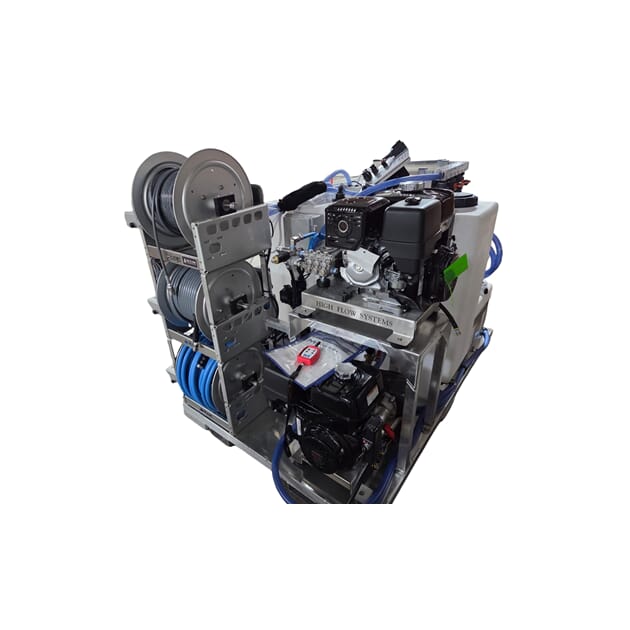

A Vortex transfer station is included for fast and efficient chemical handling. All components are mounted on a heavy-duty TIG welded aluminum skid (1.83 x 1.22 x 1.27 m), built for strength, stability and ease of handling.
A specialized system built for professionals using drone technology to clean smarter, safer and more efficiently – delivering unmatched control, flexibility and performance.
What’s included:

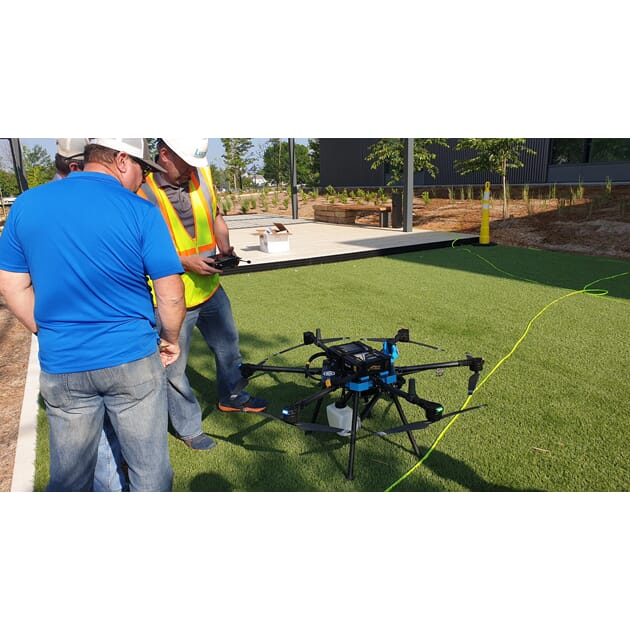

Note: Drone not included
Skid & system:
• Heavy-duty TIG welded aluminum skid (1.83 x 1.22 x 1.27 m)
• Complete drone-ready softwash & pressure wash system
• Vortex transfer station
Dual high-pressure system:
• 2 x independent pumps (drone + ground use)
• Both systems can run simultaneously
• 21 L/min @ 200 bar (per system)
• 2 x Honda GX390 engines
• Gear-driven General Pumps (chemical rated)
• RigLink remote start/stop
Drone chemical system:
• ClearView Hydro-Mixer V6
• Up to 5 chemical options
• Water / pure water / chemical integration
Ground chemical system:
• V3 downstream injector
• Up to 2 chemical options
Remote control system:
• RigLink remote (single controller)
• Start/stop both systems
• Control chemical application on both
Tank setup:
• 380L water / pure water tank
• 200L chemical tank
• 2 x 25L soap tanks
Hose & reels:
• 3 x electric hose reels (aluminum / stainless)
• 60m drone / softwash hose (1/4”)
• 60m high pressure hose (3/8”)
• 60m water supply hose
DI filter system:
• High-capacity DI filter
• Sediment + carbon pre-filters
• Inline TDS meters (pre & post)
• Bypass valve
Electrical:
• 12V Group 27 battery
• Fuse panel
• Onboard charger
Accessories & protection:
• Chemical-resistant trigger (quick connect)
• 45 cm PVC wand (Schedule 80)
• JROD nozzle set
• Float shutoff + inlet strainer
• Poly / stainless fittings
